Z-Booms , 36Z-Meter
Is one of our most popular models. It has great reach with the only four-section
Description

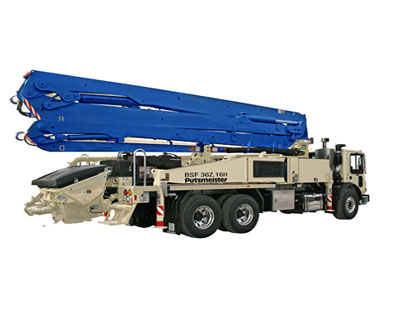

With its detachable Putzmeister Z-Fold boom, the 36Z is one of our most popular models. It has great reach with the only four-section, 116-foot 10-inch boom on the market using X-style outriggers. The powerful pumping performance with a small footprint makes it perfect for restrictive job sites. Pump from the truck with rotation bearing slewing for precise control of concrete flow, or fly the boom to a placing tower with the quickest and easiest truck-to-tower conversion.
| Boom Specifications: 4-Section, Z-Fold Design | ||
| Boom Style | ||
| Boom Style | Z-Fold | |
| Number of sections | 4 | |
| Height and Reach | ||
| Vertical reach | 116' 10" (35.60m) | |
| Horizontal reach | 103' 0" (31.40m) | |
| Reach from front of truck* | 94' 10" (28.90m) | |
| Reach depth | 78' 5" (23.90m) | |
| Unfolding height | 27' 11" (8.50m) | |
| Boom Section Articulation | ||
| 1st section articulation | 104° | |
| 2nd section articulation | 180° | |
| 3rd section articulation | 253° | |
| 4th section articulation | 225° | |
| Boom Section Length | ||
| 1st section length | 27' 11" (8.50m) | |
| 2nd section length | 24' 11" (7.60m) | |
| 3rd section length | 24' 11" (7.60m) | |
| 4th section length | 25' 11" (7.90m) | |
| Outriggers | ||
| Outrigger spread L-R-front pull out & hydraulically extend down | 18' 1" (5.50m) | |
| Outrigger spread L-R-rear hydraulically extend down | 22' 8" (6.90m) | |
| Outrigger load: Front | 38,218 lbf (170 kN) | |
| Outrigger load: Rear | 38,218 lbf (170 kN) | |
| One-Sided Support (OSS) Outriggers | ||
| Safe operational zone | 120º | |
| Outrigger spread: L-R-front hydraulically extend out down | 12' 10" (3.90m) | |
| Outrigger spread: L-R-rear hydraulically swing out & extend down | 18' 8" (5.70m) | |
