Standard mixers
Description

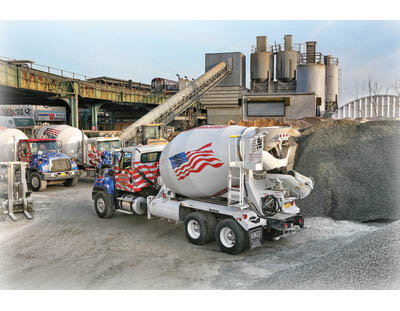

A well-earned reputation for hard work and low maintenance. Since 1975, the McNeilus Standard Mixer has defined what a concrete mixer should be. We mix better, pour better and provide better value than other brands. From the single piece spun head to the strengthened fins, the Standard Mixer features the most robust drum in the industry. Components, like ZF gearboxes, ensure reliability and maintain resale value.
BROCHURE STANDARD MIXERS WITH STANDARD DRUM>> DOWNLOAD
Specifications
2016 MODEL YEAR NEW STANDARD ADDITIONS
- PTO covers with access to U-joint grease zerks
- Rear control pendant hook
- Non-pivot mounting plate for water injection tee
- Washout hose nozzle bracket
- OEM light harness connector enclosure
- White mudflaps on the front fender wing
STANDARD BODY
Drum Capacity 11 cu yd.
Discharge Opening 42 in.
Drum Transmission PMP PMB 7.1
Head Thickness 1/4 in.
Skin Thickness 3/16 in.
Fin Thickness 3/16 in.
Surge Fins Bolted
Hatch One, bolted
STANDARD MAIN CHUTE
Length 5 ft.
Chute Material Steel
STANDARD FOLD-OVER CHUTE AND EXTENSIONS
Lift Hydraulic-driven
Lock Air lock
Length Transitional 30in.
Extension 1 4 ft.
Extension 2 4 ft.
STANDARD WATER SYSTEM
Tank Steel, 125 gallon
Water Valves Standard ball valves
STANDARD LIGHTING
LED lights
3-bar light located on charge hopper
STANDARD HYDRAULICS
Pump Eaton 54 Series
Motor Eaton 54 Series
Reservoir Nylon
Reservoir Mounting Inside of pedestal
STANDARD CONTROLS
Drum Control Type Cable
Cab Configuration Cable controls
STANDARD FENDERS
Skin Material Steel
Mud Flaps White plastic
PAINT
- Drum and components steel shot blasted prior to priming with high solids epoxy primer
- Standard Finish: One color (white), Sikken’s Autocoat BT LV650 Topcoat, a high performance, high solids polyurethane
POPULAR OPTIONS
- FLEX Controls
- Aluminum water tank
- Back up camera
- Lightweight chutes
- Flip-up hopper
- SAT hopper
- Head impeller (lined/unlined)
- Split PTO cover
- 46 in. paver discharge opening
- ZF drum drive
- Enviroguard washout system
- Chute wash recovery system
- Rock buster or chute shutter
- Tow recovery hook
