CCI-Lined Schwing Backend Kit
Chrome Carbide Lined Backend Kit for Schwing pump trucks. Other reducer lengths, elbow bend angles and end styles are available upon request. Harsh mix configurations are also available, consult factory.
Description
Specifications
Components:
- DN125/5 CCI-Lined elbow
- DN150/5.75 - DN125/5 CCI Lined reducer
- DN150/6 90° CCI-Lined elbow
- DN180/150 CCI-Lined reducing elbow
- Weld Ends: Steel with chrome carbide insert
- PRODUCT Features
Chrome Carbide Lined Backend Kit for Schwing pump trucks. Other reducer lengths, elbow bend angles and end styles are available upon request. Harsh mix configurations are also available, consult factory.

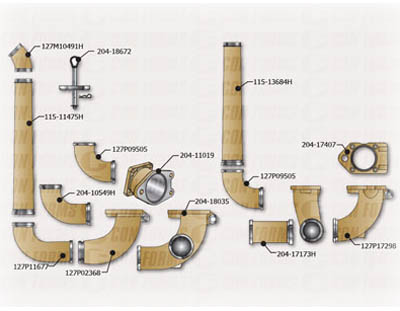

- Factory Part Numbers
| Part Number | Size mm/in. | Description |
|---|---|---|
| 265M10491 | DN125/5 | 45° CCI-Lined Elbow |
| 120-11475 | DN150/6 - DN125/5 | 63" lg. (1600mm) CCI-Lined Reducer |
| 265-11045 | DN150/6 | 90° CCI-Lined Elbow long tangent |
| 265-10549 | DN150/6 | 90° CCI-Lined Elbow short tangent |
| 265-09505 | DN150/6 | 90° CCI-Lined Elbow no tangent |
| 265-13351 | DN180/7 - DN150/6 | CCI-Lined Reducing Elbow |
| 265-11019 | DN180/7 | 14° CCI-Lined Hopper Elbow |
| 187P15197 | - | CCI Rock Valve Outlet Liner |
| 204-18672 | DN150/6 | Adjustable Ball Stop and Grout Port Cap |
| 204-17407 | DN180/7 | Hinge mount plate for 7 to 6 Elbow (127P17298) |
| 265-17298 | DN180/7 - DN150/6 | CCI-Lined Reducing Elbow with offset |
| 265-17173 | DN150/6 | Break-out Straight section (male to female) ends |
| 265-09505 | DN150/6 | 90° CCI-Lined Elbow: no tangent |
| 120-13684 | DN150/6 - DN125/5 | 59.06" lg. (1500mm) CCI-Lined Reducer |
