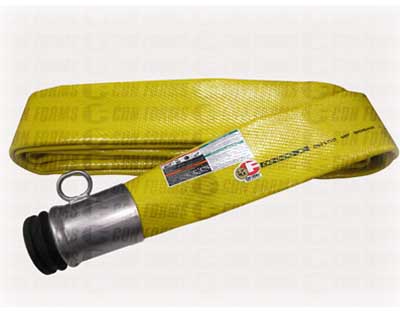

Lay-Flat Tip Hose
The Lay-Flat hose allows for improved flow control and lower placement rates than standard concrete boom tip hoses.
Description
The Lay-Flat hose allows for improved flow control and lower placement rates than standard concrete boom tip hoses. Ideal for ICF forms, columns and tall walls where space is at a minimum. Con Forms meets or exceeds strict safety regulations such as the North American ASME B30.27 2009.
Specifications
- Meets/Exceeds ASME Requirements
- 1/3 the weight
- Operator Friendly
- More consistant flow at lower placement rates
- Ease of pour in tight areas
- Bright color for visibility and safety
- Superior resistance to weather and aging
- Cleans up easily
- PRODUCT Features
The Lay-Flat hose allows for improved flow control and lower placement rates than standard concrete boom tip hoses. Ideal for ICF forms, columns and tall walls where space is at a minimum. Con Forms meets or exceeds strict safety regulations such as the North American ASME B30.27 2009.
- Factory Part Numbers
Part Number Length End Type Dry Weight F.W.C. Weight H40LF10D1A 10 ft. Hevi-Duty™ 24 lbs. 180 lbs. H40LF12D1A 12 ft. Hevi-Duty™ 26 lbs. 214 lbs. H40LF15D1A 15 ft. Hevi-Duty™ 30 lbs. 264 lbs. H40LF20D1A 20 ft. Hevi-Duty™ 36 lbs. 348 lbs. H40LF25D1A 25 ft. Hevi-Duty™ 41 lbs. 432 lbs. H40LF10RM1A 10 ft. 148mm 36 lbs. 209 lbs. H40LF15RM1A 15 ft. 148mm 42 lbs. 293 lbs. H40LF20RM1A 20 ft. 148mm 48 lbs. 377 lbs.
