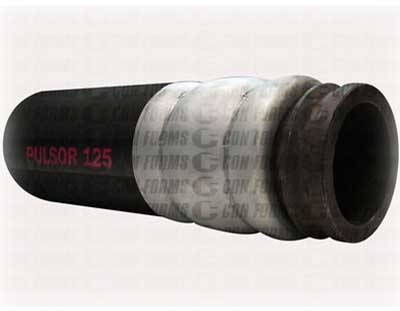

N1 Discharge Hose (Trelleborg)

Discharge hose with woven wire reinforcement and an extruded rubber tube.

Description

  • PRODUCT Features
Discharge hose with woven wire reinforcement and an extruded rubber tube. Manufacturer, size, weight and working pressure embossed on outer wrapper.
  • Factory Part Numbers

    Part NumberSize
    in/mm.    		Mfg. Min. Burst
    (bar/psi)    		Working Pressure
    bar / psi    		Shipping Weight
    lbs. / kg.    		F.W.C.
    (lbs/kg) ft.
    H15N1__K 1-1/2 / 38 200 / 2940 70 / 1000 0.8 / .36 2.7 / 1.2
    H20N1__K 2 / 51 200 / 2940 70 / 1000 1.5 / .68 4.7 / 2.1
    H25N1__K 2-1/2 / 63.5 200 / 2940 70 / 1000 2.6 / 1.2 7.9 / 3.6
    H30N1__K 3 / 76 125 / 1838 42 / 600 3.3 / 1.5 10.7 / 4.9
    H40N1__K 4 / 102 125 / 1838 42 / 600 4.7 / 2.1 17.8 / 8.1
    H50N1__K 5 / 125 125 / 1838 42 / 600 6.6 / 3.0 26.4 / 12
