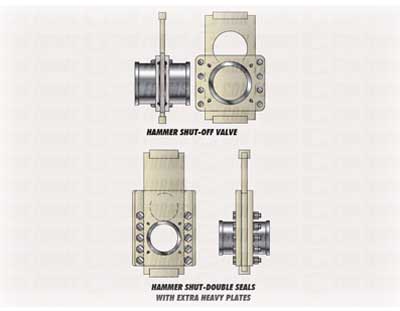

Hammer Shut-Off Valve
The hammer shut-off valve features versions with single or dual hardened seal rings. A heavy plate is used to construct the sliding plate and side plate. The removable side plates facilitate cleaning. Maximum pressure rating is 300 feet vertical.
Description
The hammer shut-off valve features versions with single or dual hardened seal rings. A heavy plate is used to construct the sliding plate and side plate. The removable side plates facilitate cleaning. Maximum pressure rating is 300 feet vertical.
Factory Part Numbers
| Part Number | Size in/mm. | Description |
|---|---|---|
| V20XHS_ | 2.0 / 51 | Dual Seals |
| V25XHS_ | 2.5 / 63.5 | Dual Seals |
| V30HS_-S | 3.0 / 76 | Single Seals |
| V30XHS_ | 3.0 / 76 | Dual Seals |
| V40HS_-S | 4.0 / 102 | Single Seals |
| V40XHS_ | 4.0 / 102 | Dual Seals |
| V50HS_-S | 5.0 / 125 | Single Seals |
| V50XHS_ | 5.0 / 125 | Dual Seals |
| V50XHSD-XL | 5.0 / 125 | Dual Seals, Extra Heavy Plates, 130 bar / 1885 psi |
| V60HS_-S | 6.0 / 152 | Single Seals |
| V60XHS_ | 6.0 / 152 | Dual Seals |
