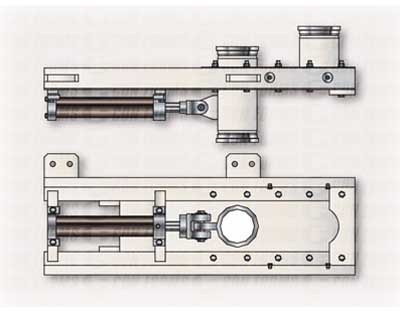

Hydraulic Sliding Shut-Off / Diversion Valve
The Hydraulic Sliding Shut-Off valve features a push-pull operation by one hydraulic cylinder. The valve body is rated at a nominal concrete working pressure of 1233psi/85bar.
Description
The Hydraulic Sliding Shut-Off valve features a push-pull operation by one hydraulic cylinder. The valve body is rated at a nominal concrete working pressure of 1233psi/85bar. The sliding shut-off/diversion plate has a single hardened steel ring to provide a seal between the stationary and moveable valve plate. Valves that use 148mm ends have a maximum pressure rating of 85bar (1233psi). Consult factory for 6” valve specifications.
Factory Part Numbers
| Part Number | Size in/mm. | End Type |
|---|---|---|
| 135-12639 | 5.0 / 125 | Hevi-Duty™ |
| 135-14740 | 6.0 / 152 | Hevi-Duty™ |
