TW5 + 2 Deck Pipe

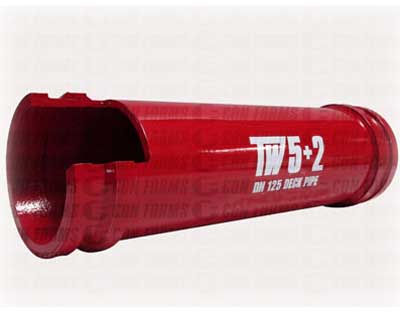

DN125/4.8 Twin-Wall™ Deck Pipe features a 5.0mm wear resistant pipe liner and a 2.0mm steel shell. The ends are designed with a chrome carbide liner for wear protection at the coupling joint.
Description
DN125/4.8 Twin-Wall™ Deck Pipe features a 5.0mm wear resistant pipe liner and a 2.0mm steel shell. The ends are designed with a chrome carbide liner for wear protection at the coupling joint.
Specifications
| System | DN125/4.8 |
| Wall Thickness | 5.0mm + 2.0mm |
| Hardness | Up to 68HRc |
| Max Working Pressure | 85 bar (1233 psi) |
| Pipe Weight | 15.5 lbs/ft (23.1 kg/m) |
| F.W.C. Weight | 37.0 lbs/ft (55.1 kg/m) |
- PRODUCT Features
DN125/4.8 Twin-Wall™ Deck Pipe features a 5.0mm wear resistant pipe liner and a 2.0mm steel shell. The ends are designed with a chrome carbide liner for wear protection at the coupling joint.
- Factory Part Numbers
| Part Number | Length (in) | Length (mm) | Shipping Weight lbs. / kg. |
|---|---|---|---|
| B5XW3937M | 39.37 | 1000 | 53 / 24 |
| B5XW7875M | 78.75 | 2000 | 104 / 47 |
| B5XWB812M | 118.12 | 3000 | 155 / 70 |
| B5XWF750M | 157.50 | 4000 | 205 / 93 |
