MR-1T

Description

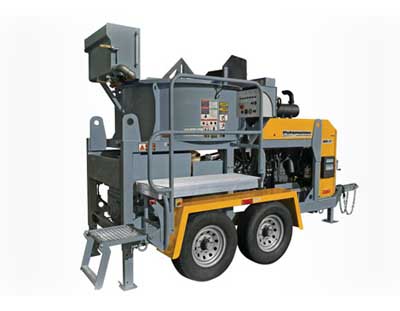

Compact, yet durable and reliable, the Putzmeister MR-1T mixer-pump is invaluable to refractory material producers, contractors and plant owners. With a small footprint and maneuverable design, it can set up in confined working environments, move from job to job easily, and requires little space for storage.

Specifications:

Industries     Refractory
Process type     Wet

Performance

Maximum volume output*     7 yd³/hr (4.6m³/hr)
Maximum material pressure*     2,000 psi (138 bar)

Technical Information

Mixer capacity**     1,500 lbs (680kg)
Mixer fill height     99" (2,515mm)
Hopper capacity     12 ft³ (340L)
Outlet diameter     4" (102mm) HD

Engine

Manufacturer's model     Duetz TCD2012L04m
Horsepower     100 hp (75kW)
Fuel tank capacity     38 gal (132L)

Trailer

Standard mounting     HD Tandem-axle trailer
Brakes     Electric

Dimensions

Length     184" (4,674mm)
Width     83" (2,108mm)
Height     104" (2,642mm) •
Weight (approximate)     8,300 lbs (3,765kg)

Options

Power     Electric version 460V, 60Hz, 3-phase
Mounting     Forklift skid, Horizontal flatpack and fork pockets
Special     Perastaltic chemical/accelerant dosing pump; output pressure adjustment for grouting; hydraulic surge brakes; auto reverse brake lockout (hydraulic brakes only); aluminum wheels (tandem), high pressure washer for cleanup

*Maximum theoretical values listed. Maximum output and pressure cannot be acheived simultaneously. Output of Mixer-Pumps will vary depending on logistics of job site and materials requirements.
** Mixer capacity is based on an average low cement refractory castable of 165 lb (75kg) density.
• A small number of parts can be removed for a shipping height of 89" (2,253mm).
