Magnum

Description

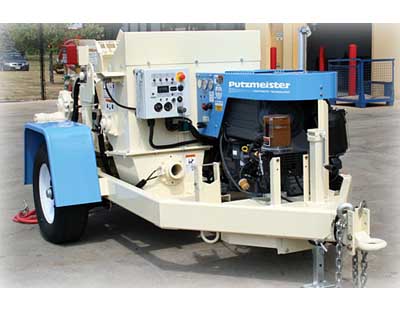

Putzmeister's most versatile concrete repair pump, the Magnum is ideal for wet-process shotcrete in civil applications. It has a powerful 46 hp Deutz diesel engine and conveys low slump concrete and packaged high-performance materials over long distances.

Specifications:

Industries/Process Type
Industries     Civil
Process type     Wet

Performance

Maximum volume output*     5 yd³/hr (3.80m³/hr)
Maximum material pressure*     1,750 psi (120 bar)

Technical Information

Mixer capacity**     5 ft³ (142L)
Mixer fill height     50" (1,270mm)
Hopper capacity     7 ft³ (198L)
Outlet diameter     3" (76mm) HD

Engine

Manufacturer's model     Duetz D2011L03i
Horsepower     46 hp (34kW)
Fuel tank capacity     10 gal (38L)

Trailer

Standard mounting     Single-axle trailer
Brakes     Electric

Dimensions

Length     132" (3,352mm)
Width     79" (2,006mm)
Height     53" (1,346mm)
Weight (approximate)     3,500 lbs (1,588kg)

Options

Power     Electric version 460V, 60Hz, 3-phase
Mounting     Forklift skid, Horizontal flatpack and fork pockets
Special     Perastaltic chemical/accelerant dosing pump; radio remote; output pressure adjustment for grouting

*Maximum theoretical values listed. Maximum output and pressure cannot be acheived simultaneously. Output of Mixer-Pumps will vary depending on logistics of job site and materials requirements.
** Mixer capacity is based on an average low cement refractory castable of 165 lb (75kg) density.
