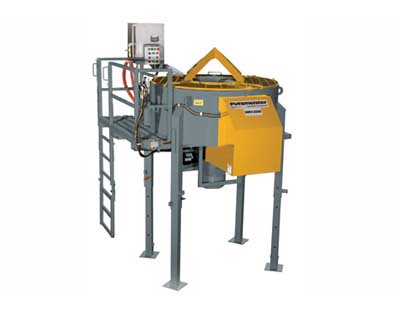

MRV-2200 Shear Force

Description

Proven in the field, Putzmeister’s MRV-2200 Shear Force mixer gives you faster mixing times. High shear, high energy, and extremely efficient, it is ideal for wet-process refractory work. The machine’s mixer discharge easily fits over the hopper of a trailer or forklift-mounted pump.

Specifications:

Industries     Refractory
Process type     Wet

Technical Information

Mixer capacity**     2,200 lbs (1mt)
Mixer fill height     88" (2,235mm)
Hopper outlet diameter     12" x 16" (305x406mm)
Mixer     Pan mixer size – 70" I.D. x 28" (1,778x711mm) inside height; electric motor directly driving a heavy-duty planetary gear reducer, directly driving a carrousel-type arrangement of six mixing paddles; hydraulically operated, water tight 13" x 16" (330x406mm) bottom discharge; replaceable abrasion resistant hard faced paddle shoes
Mounting     4 adjustable telescoping legs

Engine

Manufacturer's model     TEFC electric motor 3/60/460
Horsepower     40 hp (30kW)

Dimensions

Length     103" (2,616mm)
Width     91" (2,311mm)
Height - retracted     88" (2,235mm)
Height - extended     124” (3,150mm)
Loading height - retracted     70" (1,778mm)
Loading height - extended     106" (2,692mm)
Weight (approximate)     6,300 lbs (2,858kg)

** Mixer capacity is based on an average low cement refractory castable of 165 lb (75kg) density.
