M 500

Description

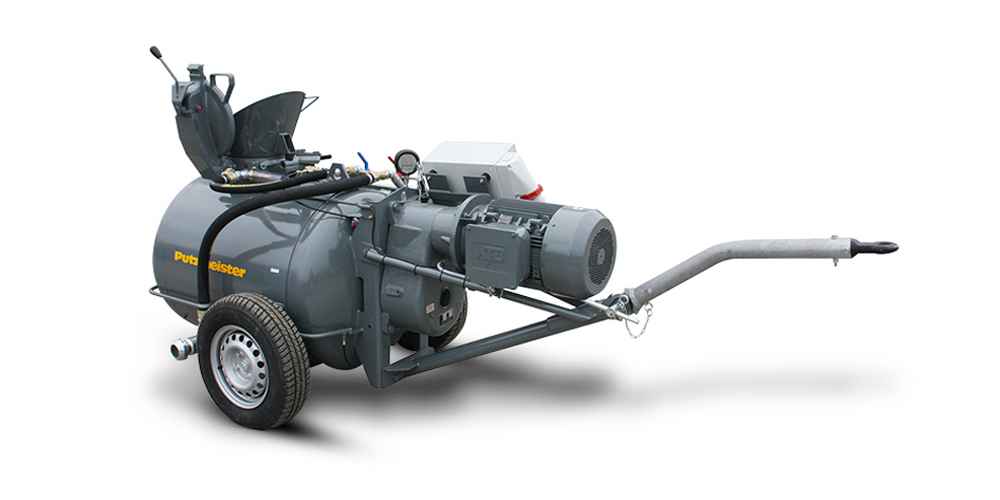

Lightweight Mixokret Model to Deliver Floor Screed

The Mixokret M 500 E is perfectly suited to deliver floor screed, sand, gravel and fine concrete up to 1.8" (32 mm). It is light and a compact alternative for a wide range of applications. It can convey materials like cement screed, Calcium sulfate screed (anhydrite), Magnesia screed as well as sand and aggregate for special application.

Key Features

Control box with emergency switch on/off
Largest mixing vessel for grain size up to 1.8" (32 mm)
Environmentally friendly E-motor 18.5 kW 400 V

General Information

Mixing Vessel:500 l
Output:4 m³/hr
Horizontal Reach:120 m
Vertical Reach:60 m
Compressor:required with output of 4 m³/min. and 7 bar operating pressure or higher
Delivery Pressure:7 bar
Engine:Electric
Engine Power:18.5 kW
Operating Voltage - Frequency:400 V / 50 Hz
Weight:1200 kg
Length x Width x Height:3730 × 1400 × 1410 mm
Filling Height:1140 mm
Max. Aggregate Size:32 mm
Chassis:unbraked
