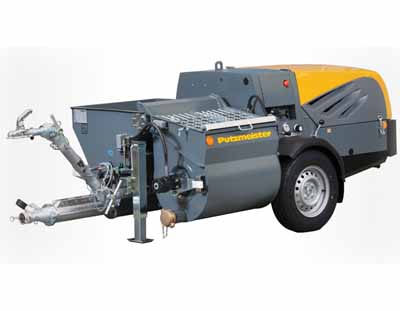

SP 11 LMR Worm Pump

Description

The compact and versatile SP 11 is the standard for operation, comfort, performance and mixing quality for worm pumps. It is ideal for pre-mixed and site-mixed mortars with grain sizes up to 0.25 inches. The standard swivel mixer provides ease of use for the operator, in addition to superior mixing results. Suitable for both thick and free-flowing mixes, the Putzmeister SP 11 is infinitely adjustable for just the right volume of material.

Industries/Process Type

Industries     Mortar
Process type     Wet

Performance

Horizontal pumping distance*     393' 8" (120m)
Vertical pumping distance*     196' 10" (60m)

Technical Information

Version     Lifting mixer
Pump type     2L6
Delivery pressure     25 bar
Theoretical delivery rate*     0.18-2.12 ft³/min (5-60 l/min)
Compressor     2-cylinder compressor, 14.13 ft³/min (400 l/min), 102 psi (7 bar)
Trap mixer     6.40 ft³ (180L)
Conveyor hopper     7.80 ft³ (220L)
Maximum aggregate size     0.25" (6mm)

Engine

Manufacturer's model     3-cylinder Kubota, at 2,600 rpm
Horsepower     21.80 hp (16.30kW)
Chassis     Without brakes, approved for road use

Dimensions

Length     139" (3,540mm)
Width     56" (1,420mm)
Height     45" (1,150mm)
Filling height     34.60" (880m)

*The delivery rate is theoretical and depends on the pump model. Depending on the pump used, the delivery rate may be higher or lower. The data is based on experience and is dependent on the materials used.
