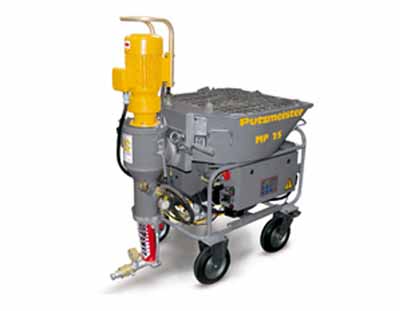

MP 25 MIXIT Mixer Pump

Description

Effective, and reliable, the Putzmeister MP 25 has all the advantages of a high-value mixer pump, but it's small and simple to operate. It is just what you need for those smaller jobs or as a spare machine and is ideal for ground coat plaster, adhesive and reinforcement mortar, refractory mortars, and texturing plasters. The MP 25 is easy to assemble onsite – without tools – by one person and handles all dry mixed mortars.

Industries/Process Type

Industries     Mortar
Process type     Dry

Performance

Horizontal pumping distance*     Up to 131' 3" (40m)
Vertical pumping distance*     Up to 49' 3" (15m)

Technical Information

Output     0.88 ft³/min (25L/min)
Pump type     D6 power
Delivery pressure     580 psi (40bar)
Compressor     7.06 ft³/min (200L/min), 0.74 hp (0.55kW)
Mixer capacity**     4.06 cu ft (115L)
Power     Electric motor, 7.38 hp (5.50kW), 400 V, 50 Hz

Dimensions

Length     52" (1,324mm)
Width     29" (728mm)
Height     59" (1,443mm)
Weight (approximate)     529 lb (240kg)
