S5 GH

Description

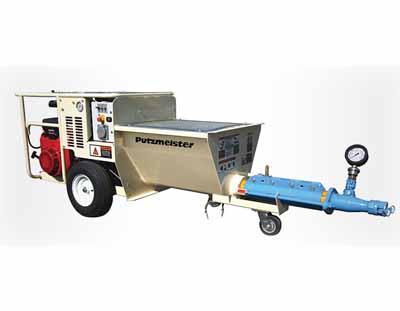

The compact gasoline-powered S5 GH from Putzmeister is a popular model for outside plaster and stucco work along with pressure grout, vermiculite, swimming pool finish, and pipeline refurbishment. You get precise control with the four-speed pump, and operators appreciate the electric start. The new hydraulic drive gives you the ease of fully variable volume output and a reverse pump feature to relieve line pressure.

Industries/Process Type

Industries     Mortar
Process type     Wet or Dry

Performance

Maximum volume output*     1.5 ft³/min • 44 lpm • 21 bags/hr
Horizontal pumping distance*     260' (80m)
Vertical pumping distance*     195' (60m)
Maximum pressure     360 psi (25 bar)
Volume control     Variable
Directional control     Reversing

Technical Information

Hopper height     26" (660mm)
Outlet diameter     2" (50mm)
Pump size     2L6

Power

208/230V     18 hp Gas
Air compressor     10 cfm

Dimensions

Length     107" (2,718mm)
Width     28.50" (724mm)
Height     35" (889mm)
Weight (approximate)     750 lbs (340kg)

*These figures will vary due to differences in mix design, line size and job site conditions. Full pressure and volume cannot be attained simultaneously. All specifications are subject to change without notice.
