TSV 5-12 Snorkel

Snorkel rides on rails set into the tunnel formwork and can turn the telescopic snorkel

Description

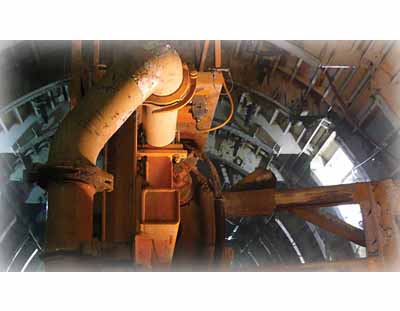

Putzmeister’s TSV 5-12 Snorkel rides on rails set into the tunnel formwork and can turn the telescopic snorkel pipe 360 degree rectangular to the formwork axle. Linked to an extendable scissor system that also rides on rails, it gives you up to 49 feet 3 inches of working range without moving the TSV - ideal for underground and civil applications.

Industries/Process Type

Industries Underground, Civil
Process type Wet

Technical Information

Power    20 hp (15kW) individual power pack
Scissor system    5" or 6" (125mm or 150mm) diameter
Telescopic snorkel pipe    360° rectangular to the formwork axle
Driving length*    49' 3" (15m)
Mounting    Rail

*The driving length can be increased by additional scissor elements or by extending the single scissor pipes on request.

Maximum theoretical values listed.

Specifications subject to change without prior notice

Photos and drawings are for illustrative purposes only. For availabale options, please contact the factory.
